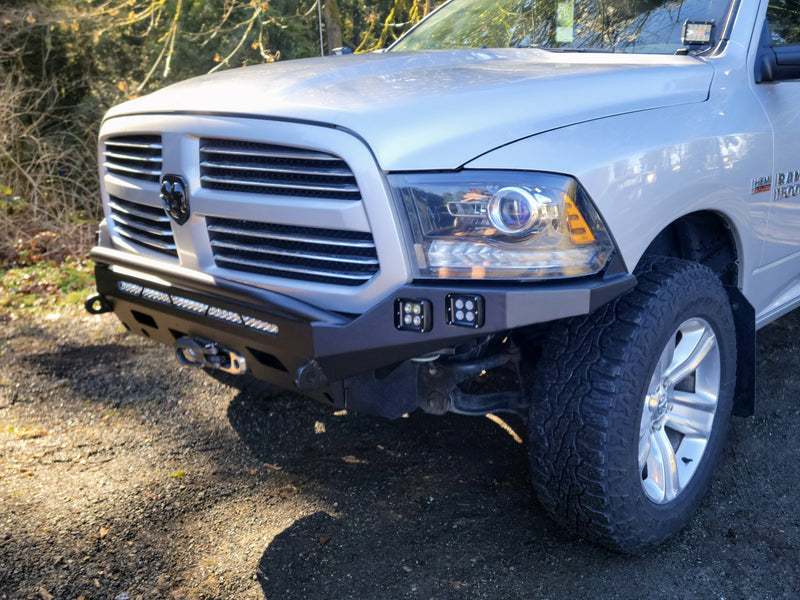

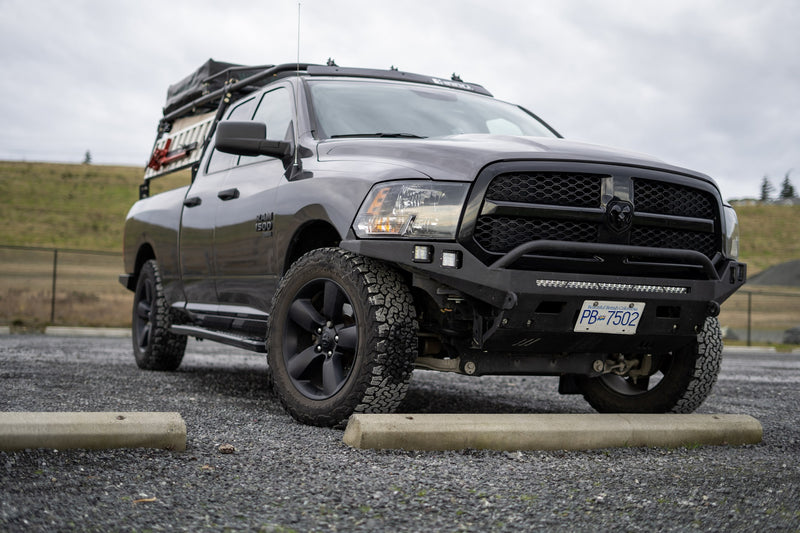

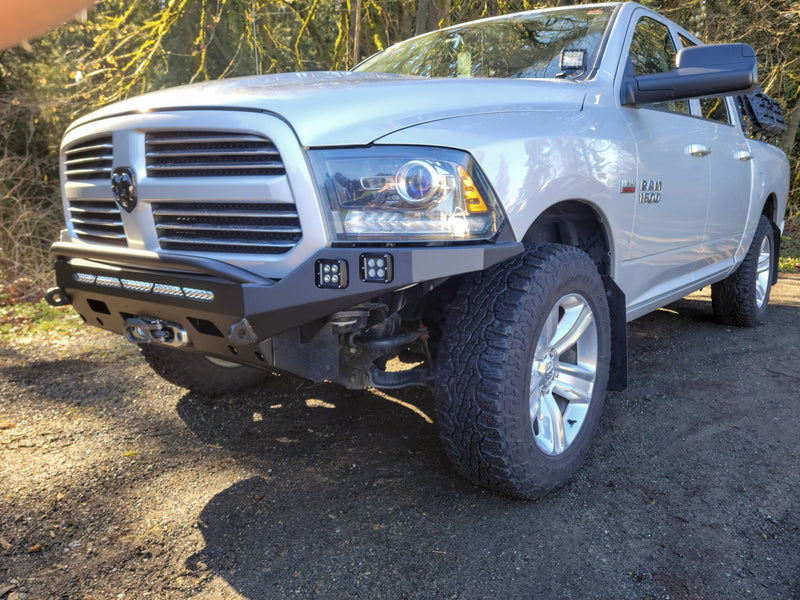

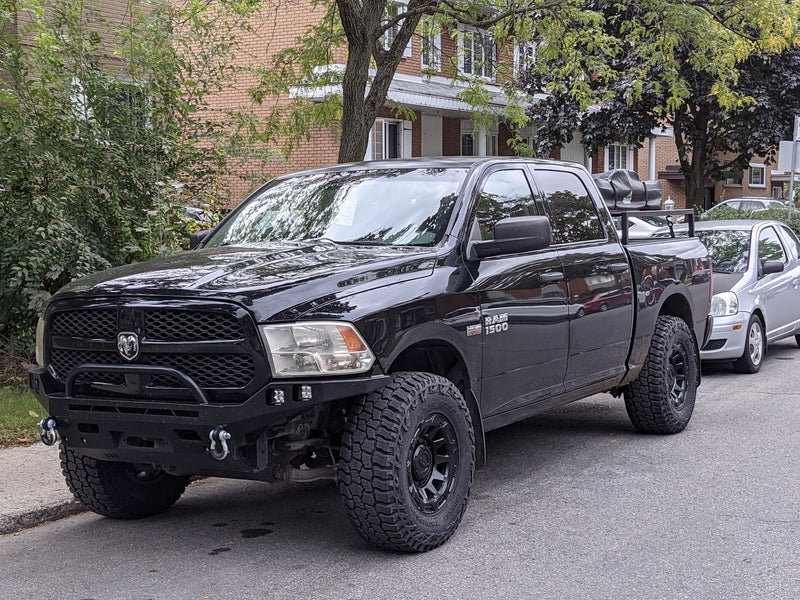

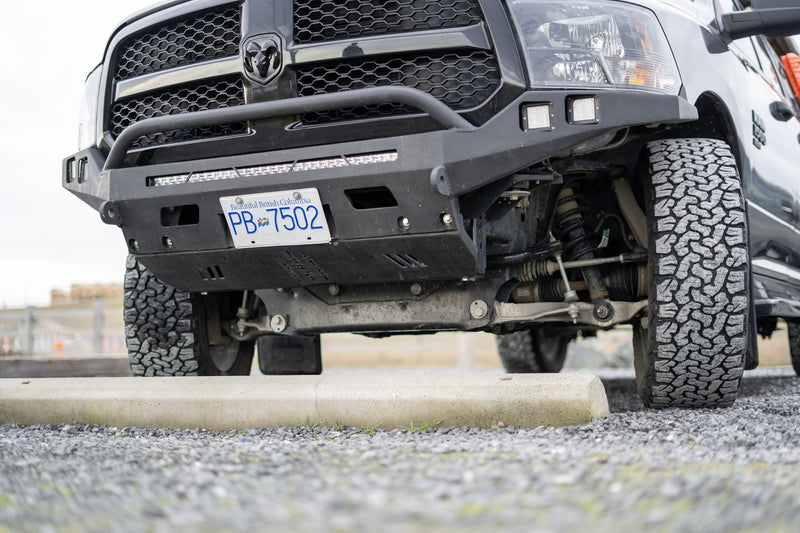

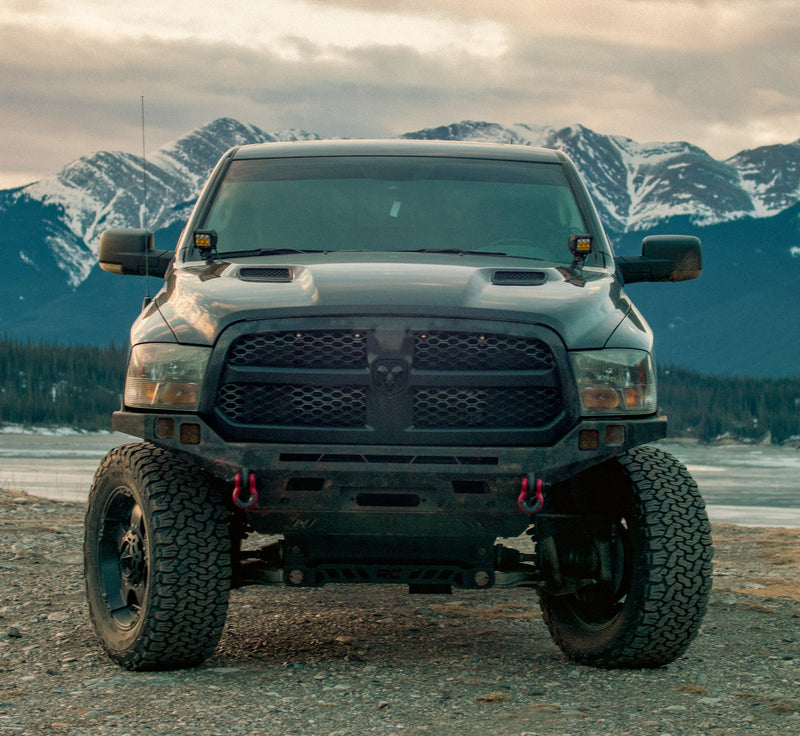

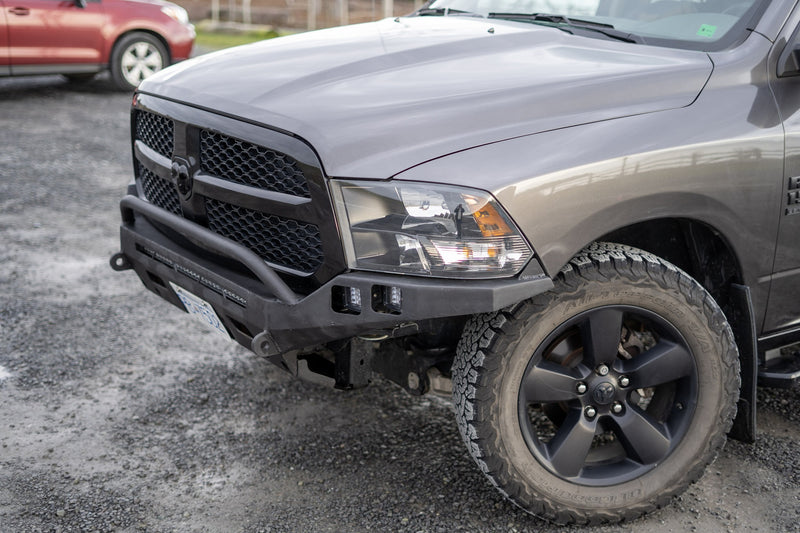

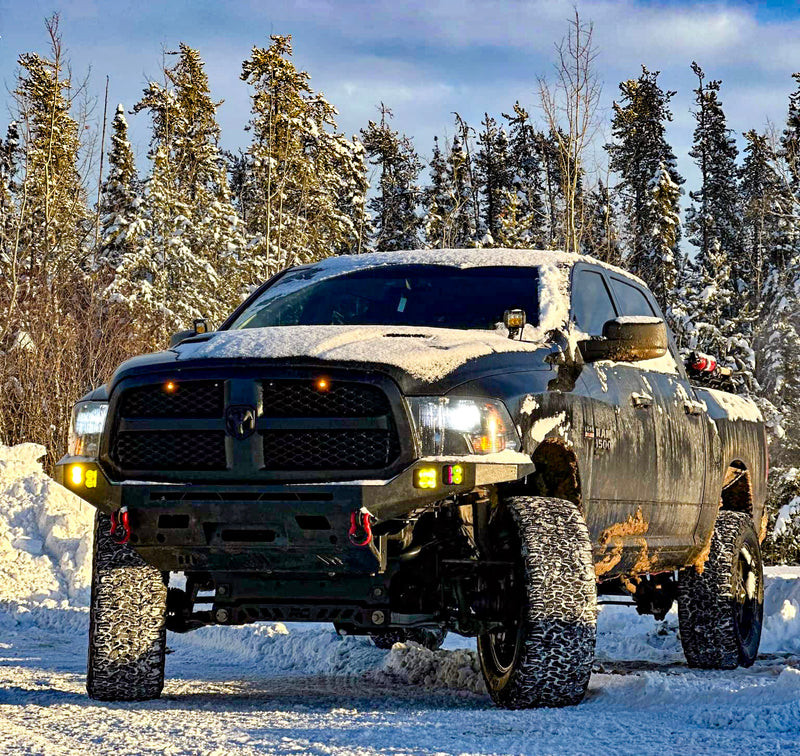

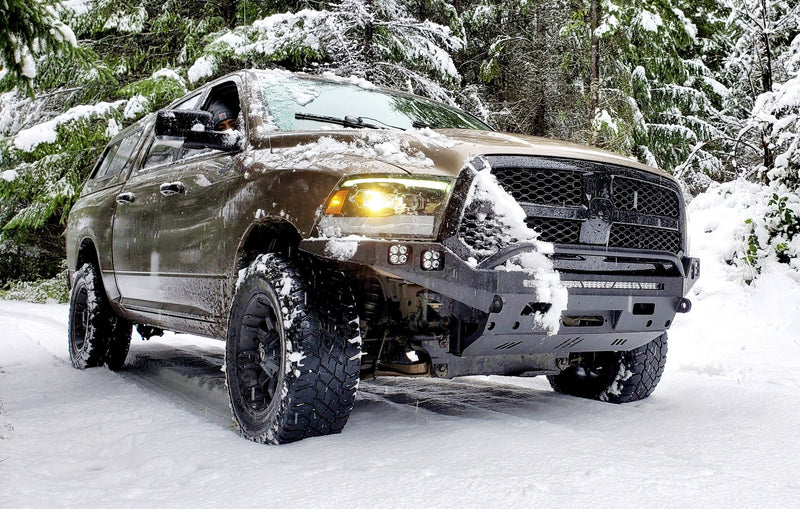

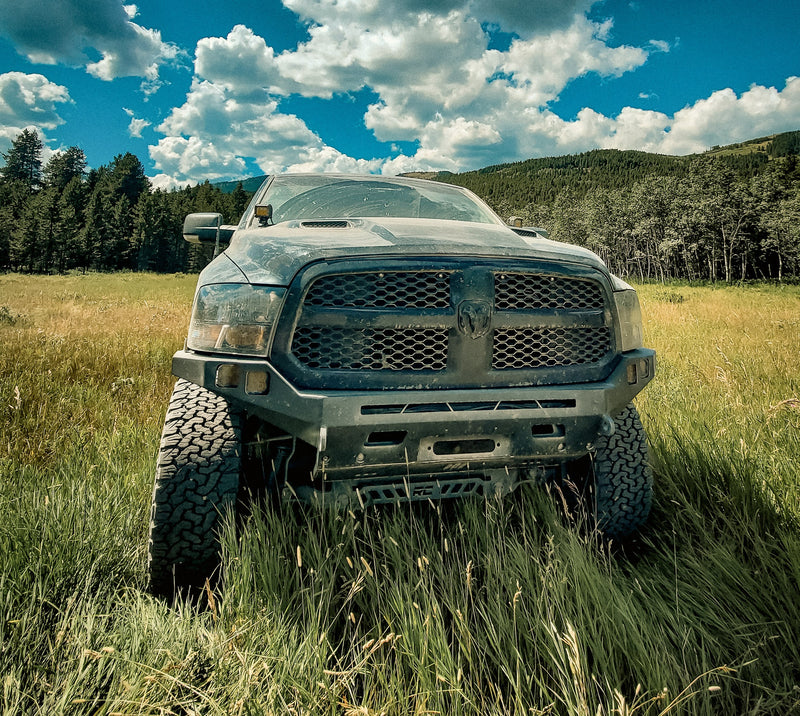

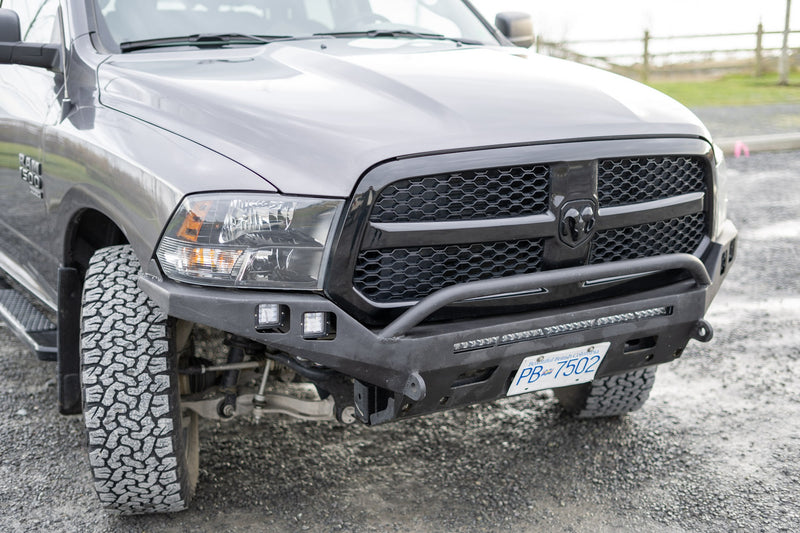

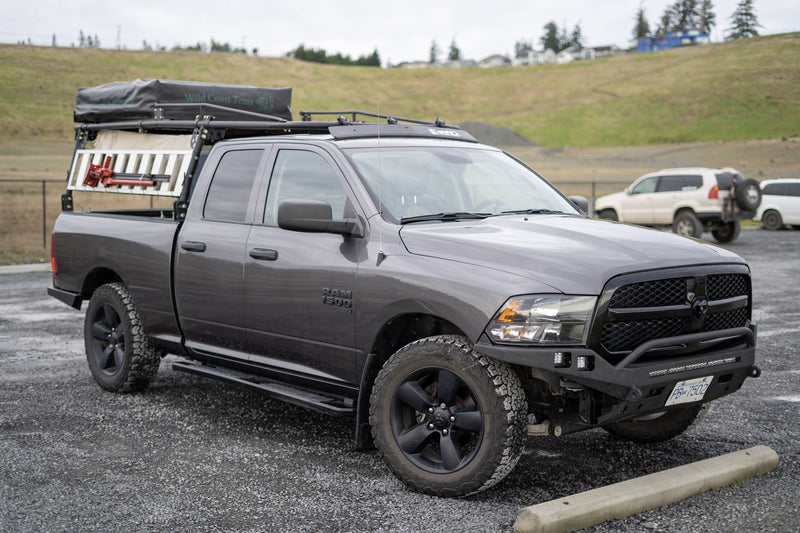

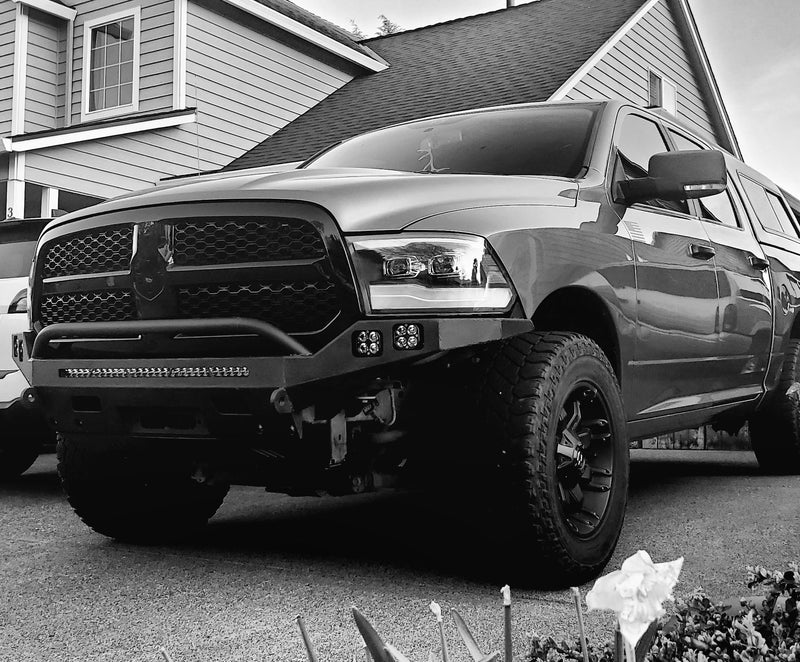

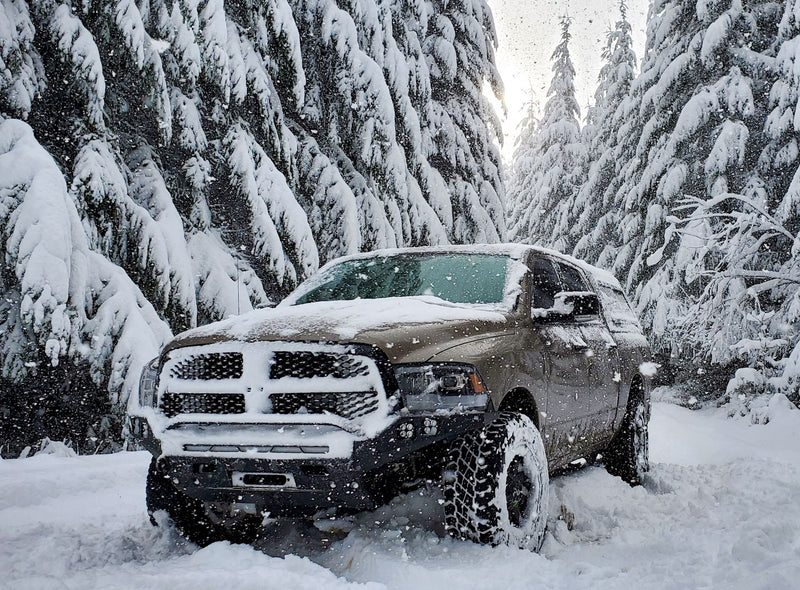

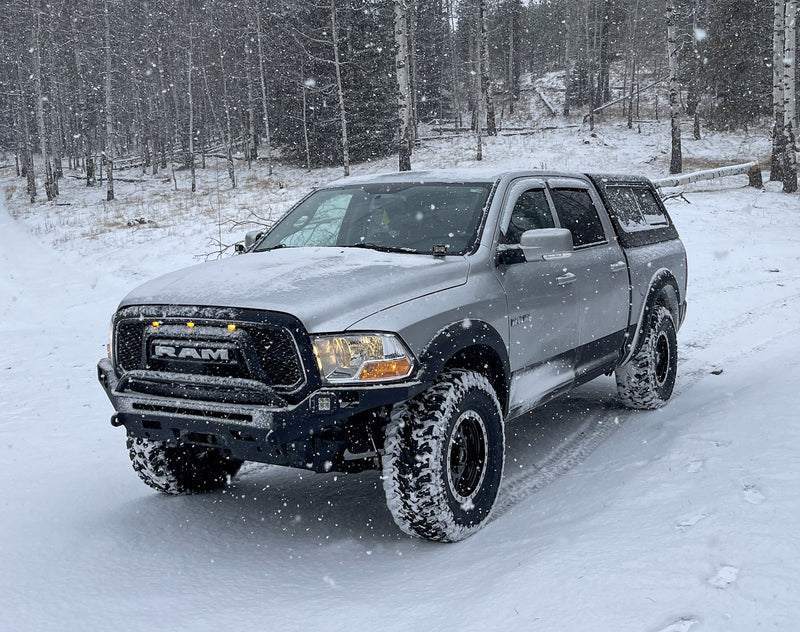

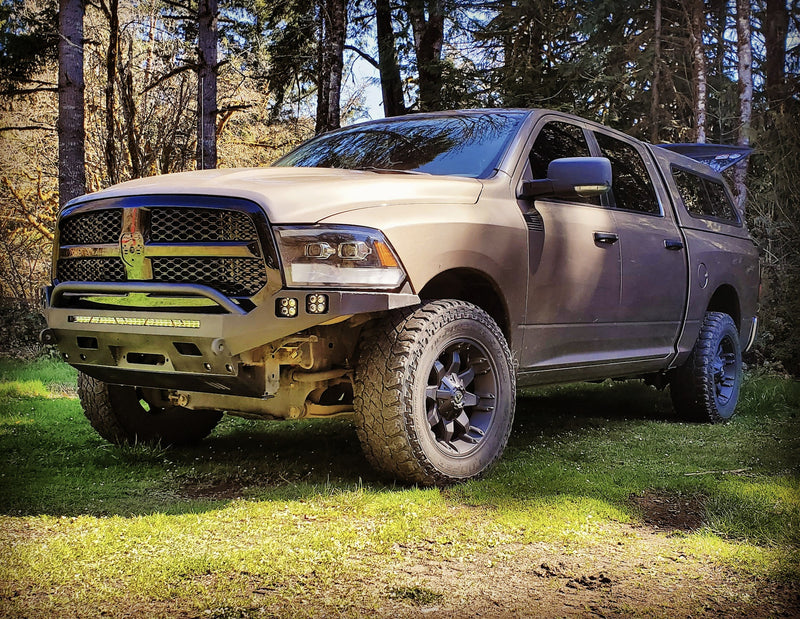

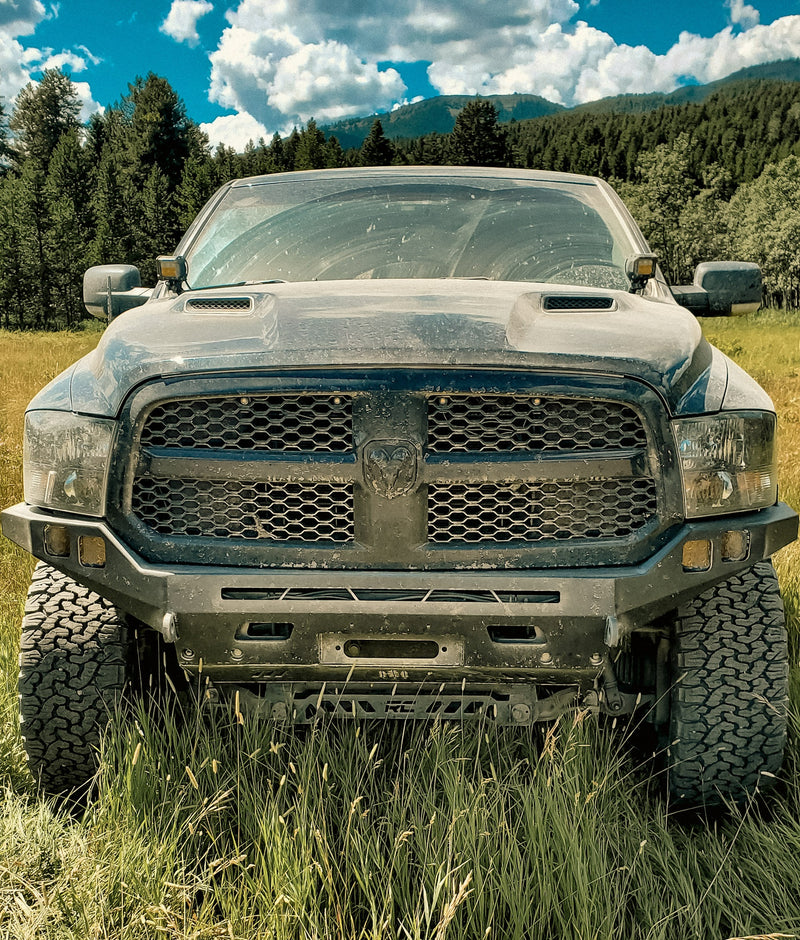

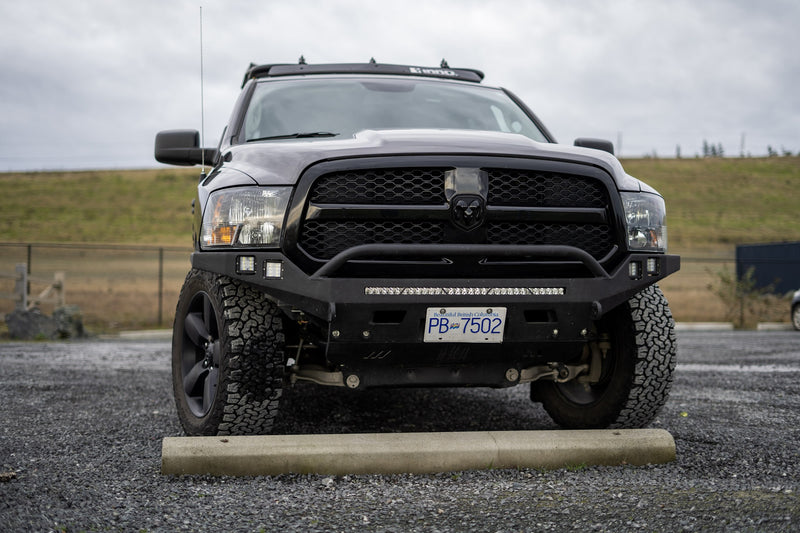

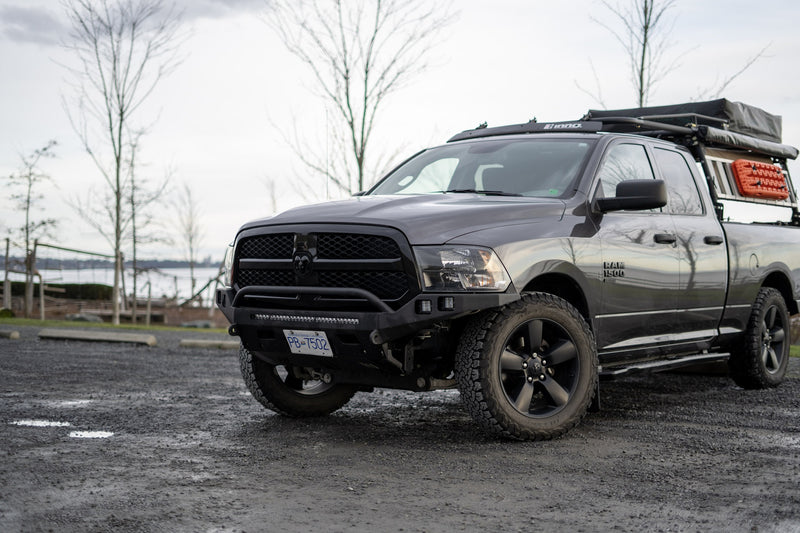

This is a high clearance DIY weld-together bumper kit for the 4th generation (2009-2018) Dodge Ram 1500 and (2019-2024) Ram Classic. It features a low profile design, fully bolt-on construction, protected winch mount and the best approach angle on the market. This bumper frees up a ton of space in your front wheel wells and allows you to run 37" tires without any bumper interference. It allows you to forget about approach angle and substantially improves the offroad capability of your Ram. It offers excellent protection from rocks, trees and animal strikes and has been kept to a very reasonable weight of 94lbs (or 47lbs in aluminum) through careful design work. This means less stress on your suspension and drivetrain components.

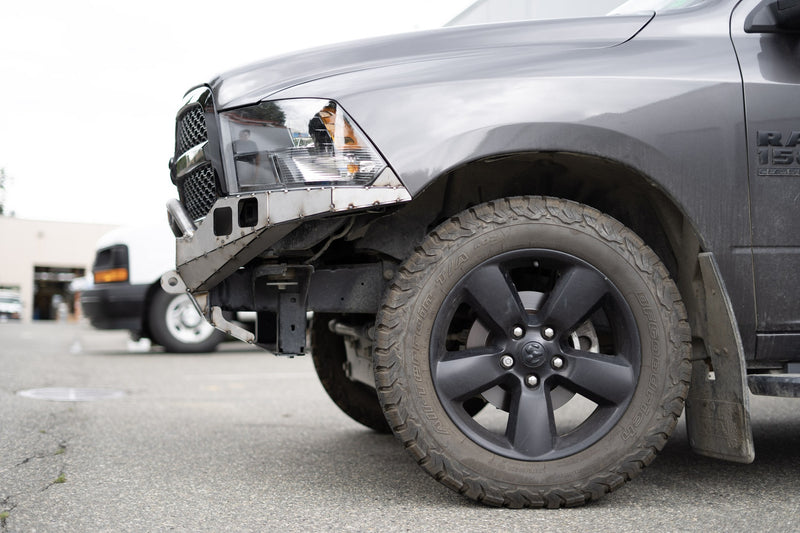

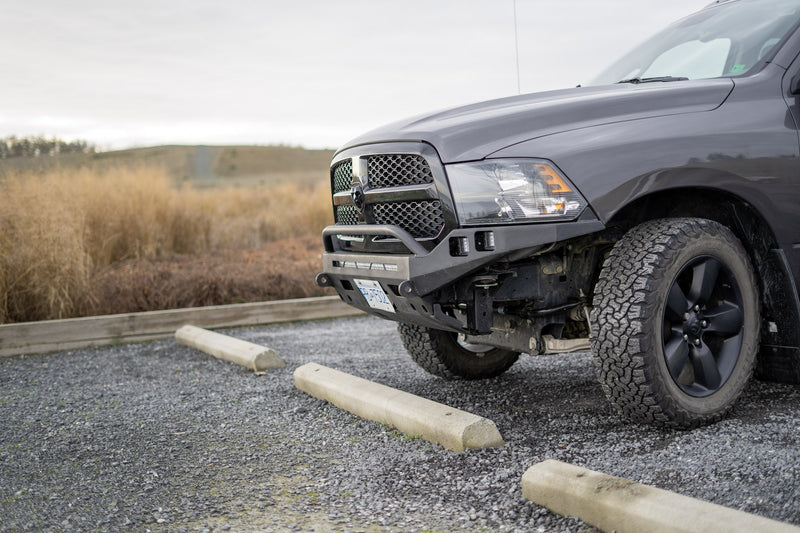

This bumper uses a total of 8 factory mounting points to solidly mount it to the frame and is available with an optional integrated skid plate for even more protection and strength. The mounting system distributes impact and winching forces evenly across your frame and makes for the stiffest mounting interface of any bumper on the market. This bumper also uses a low profile design that tucks tightly to the body and slopes up directly from the end of the frame. This results in maximum ground clearance and approach angles that will let you take lines on the trail that weren't previously possible.

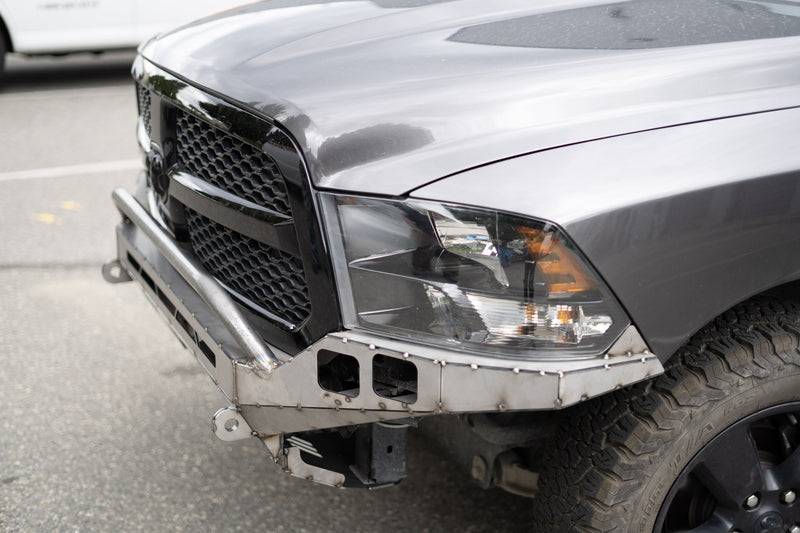

The main section of this bumper is CNC-bent out of a single piece of 3/16" P&O Steel. This greatly reduces the amount of welding and grinding required by you and makes for a cleaner finished product. If you are paying to have the bumper assembled by a welding shop, this significantly lowers the cost.

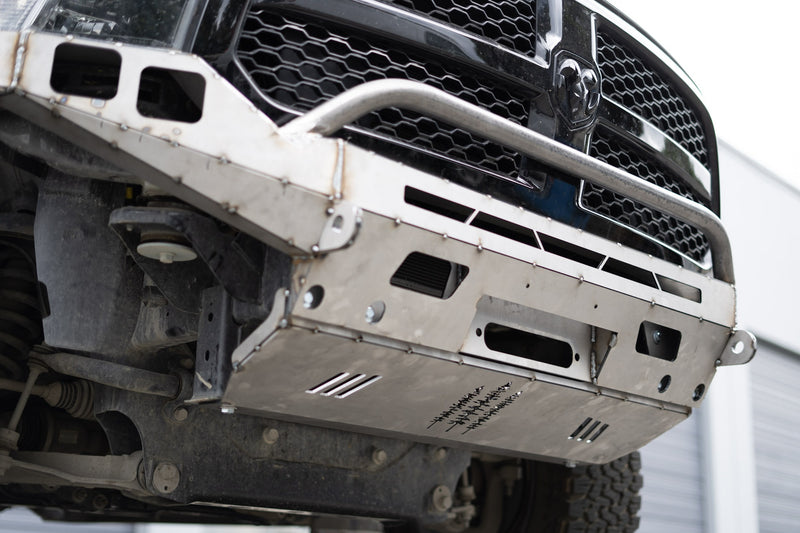

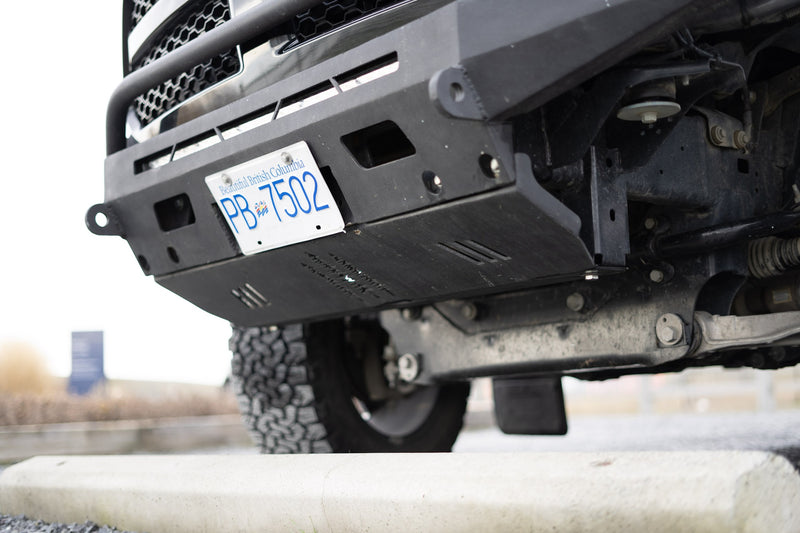

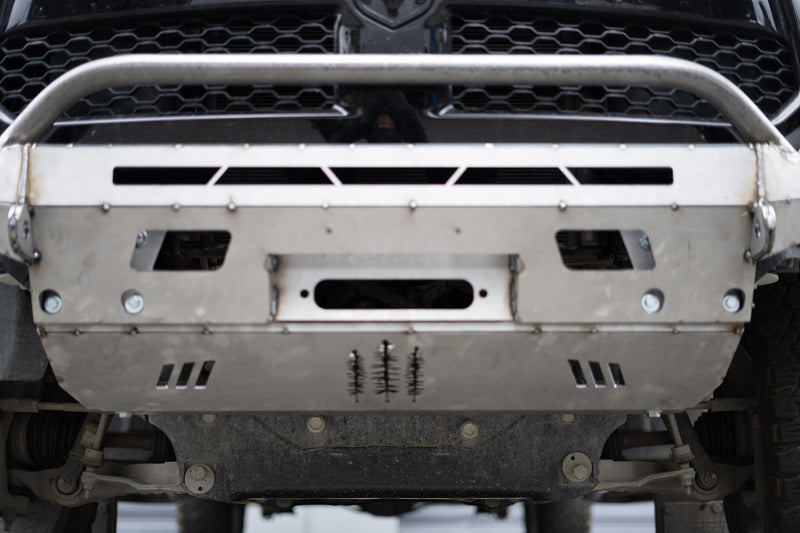

The optional lower skid plate protects your vulnerable radiator and engine bay parts and provides even more additional ground clearance compared to the flimsy stock skid plate. It has CNC cut outs that improve airflow to the radiator as well as raised sides that stiffen the skid plate and prevent debris from entering the engine bay from the sides. Like the main section of this bumper kit, this skid plate is CNC-folded from a single piece of steel. Just bolt this skid plate onto your Ram and go - no welding required.

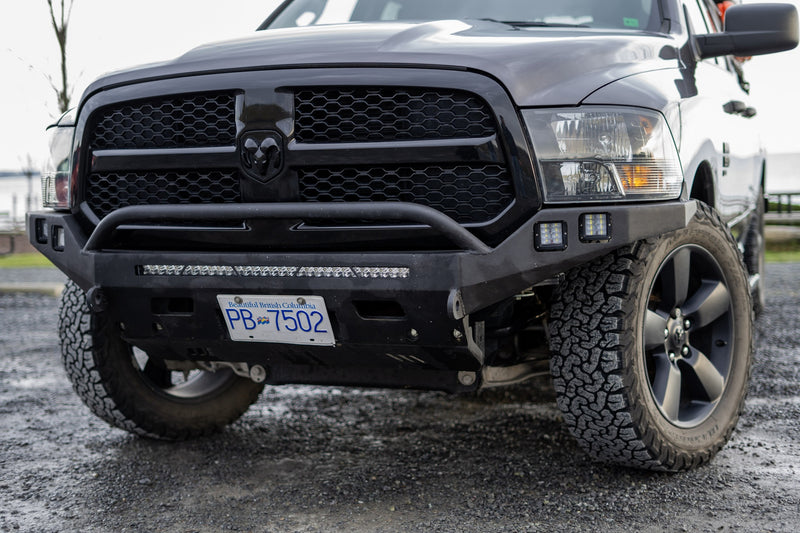

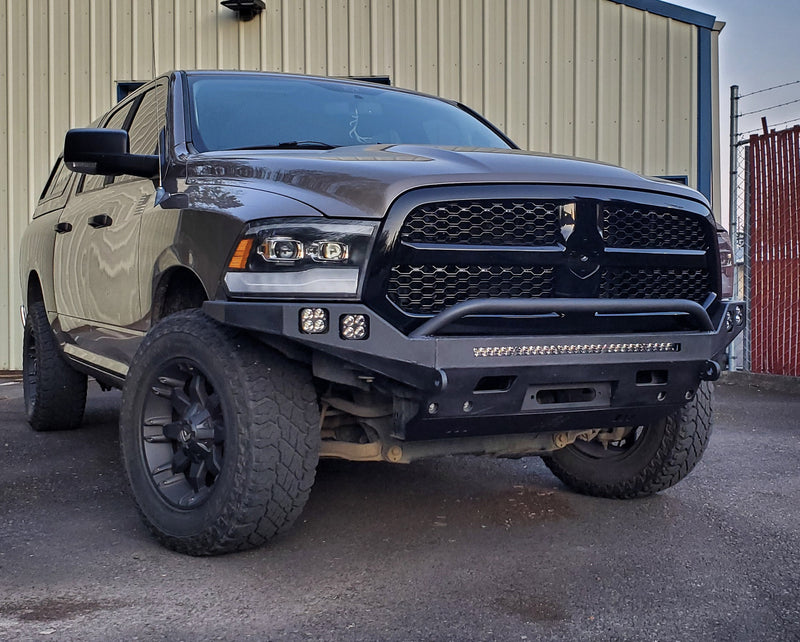

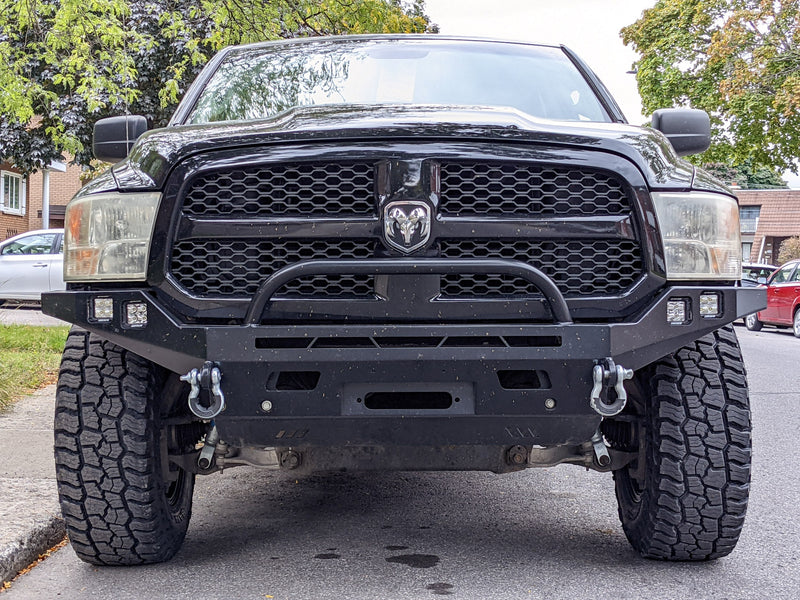

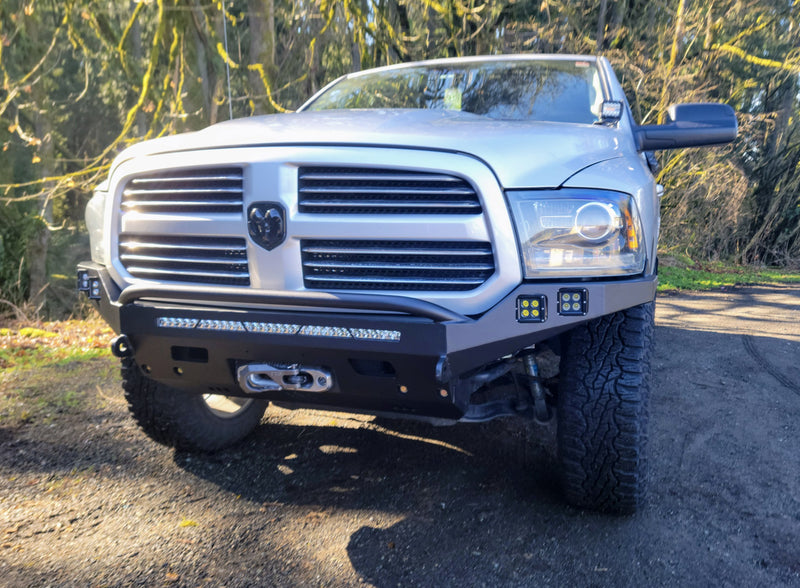

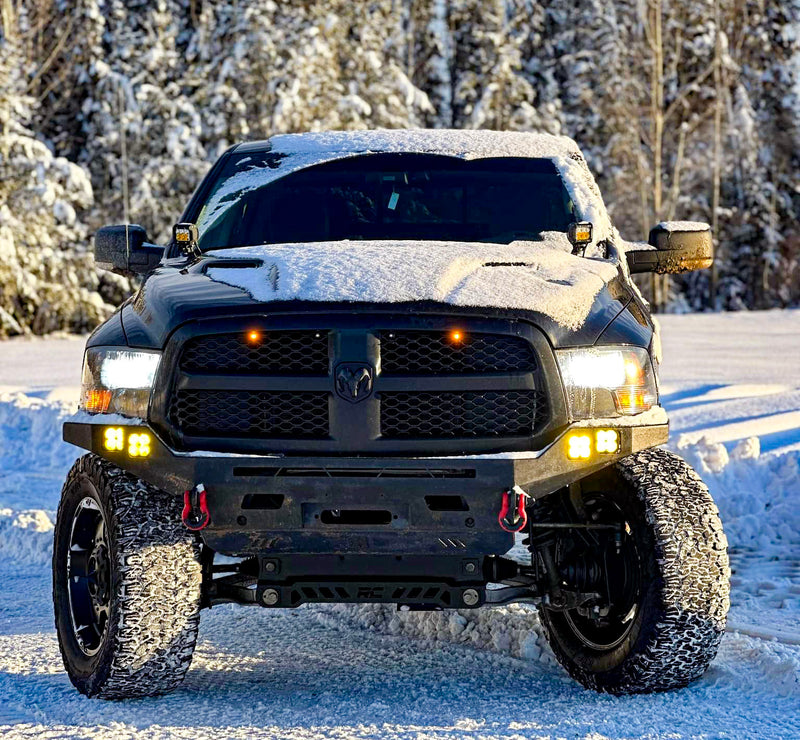

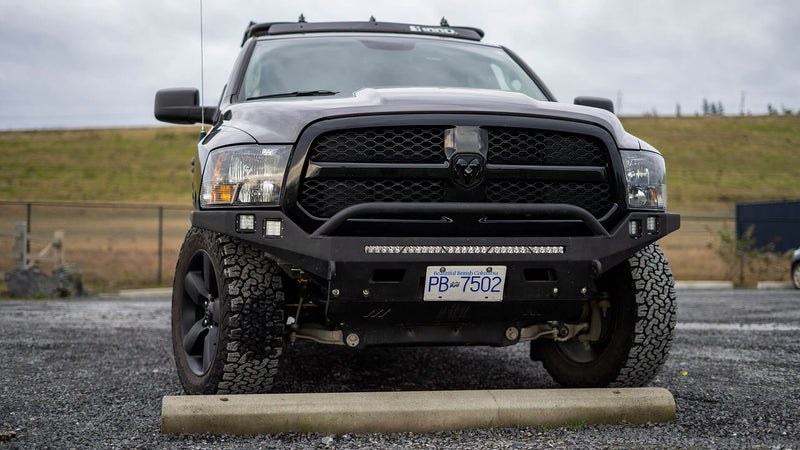

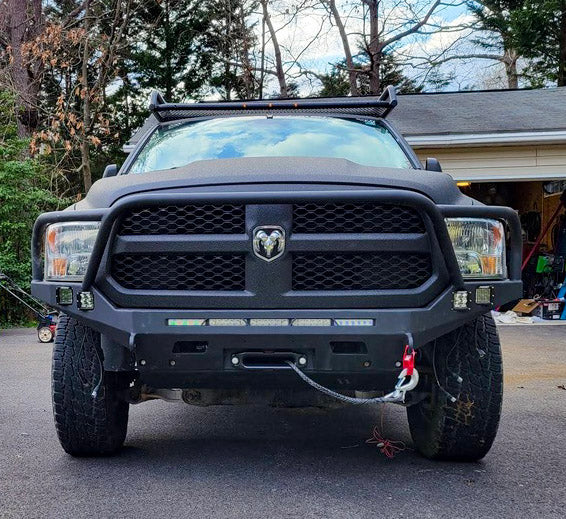

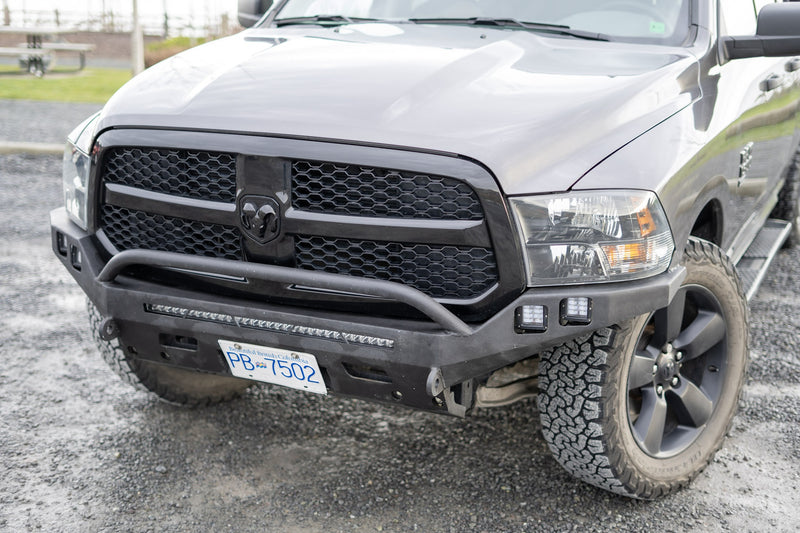

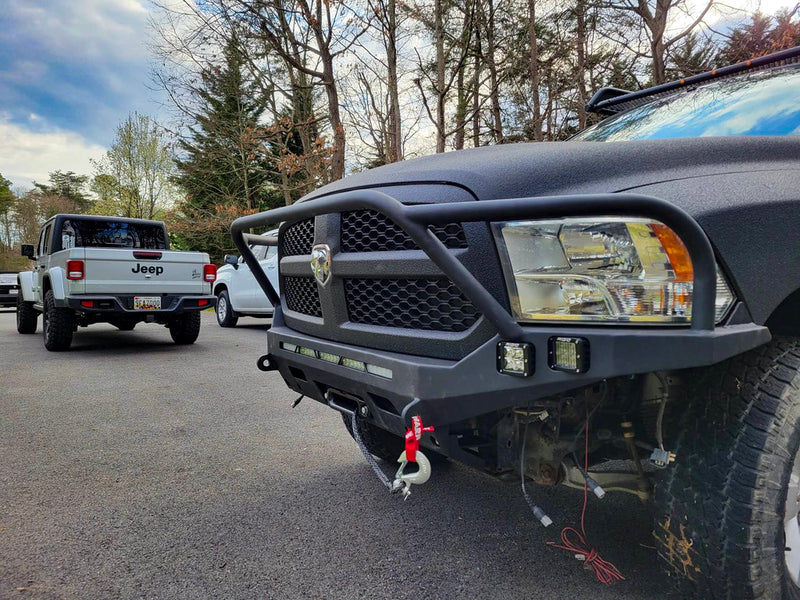

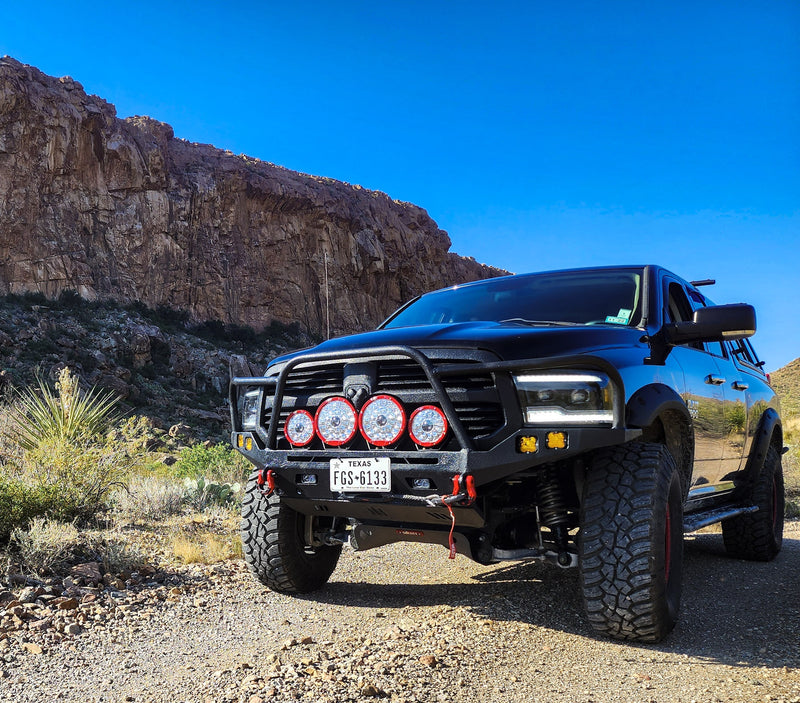

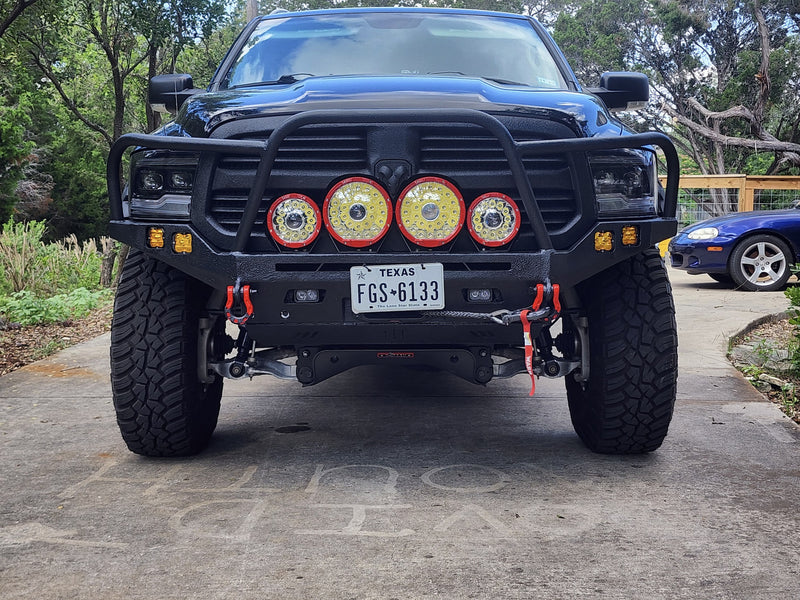

In addition to the winch mount that accepts all standard 8-12,000lb winches, this bumper comes with 4 locations to mount 3x3" surface mount LED pod lights as well as a center cut out sized to fit all 30" single row light bars. All of these lighting mounts come with slotted mounting tabs that give a ton of adjustability to fit a wide range of different lights. The recovery points are recessed into the bumper and placed as close as possible to the front of each frame rail. This directs pulling forces into the frame and eliminates the leveraging effect that traditional recovery points can put on the bumper and frame due to how far away they are from the frame. The way that our recovery points are situated makes them much stronger than their thickness may suggest. And since they are recessed, they eliminate the catching points that traditional recovery lugs can become.
