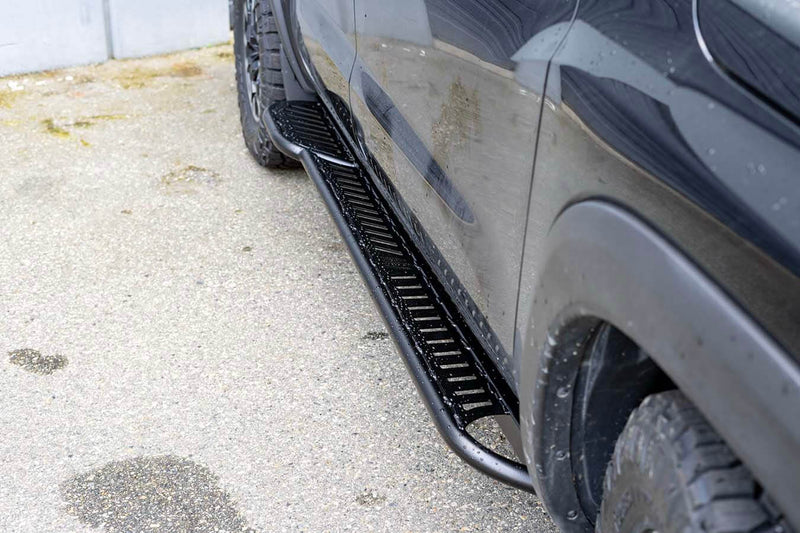

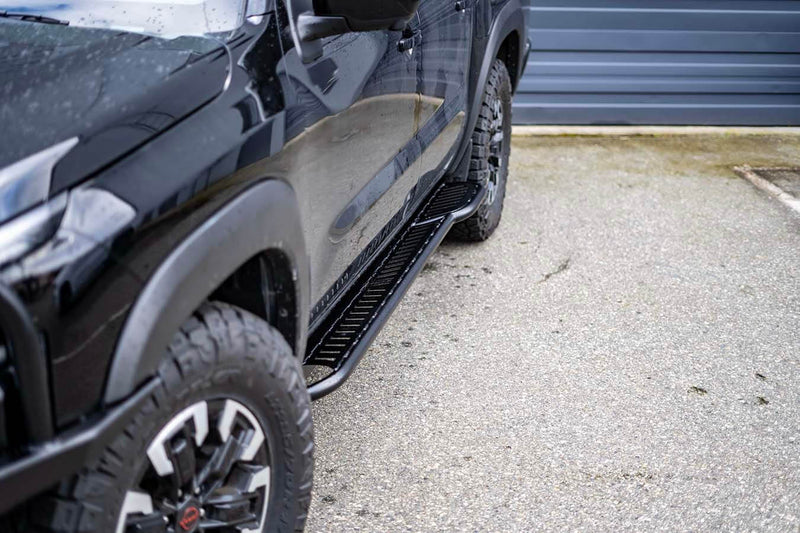

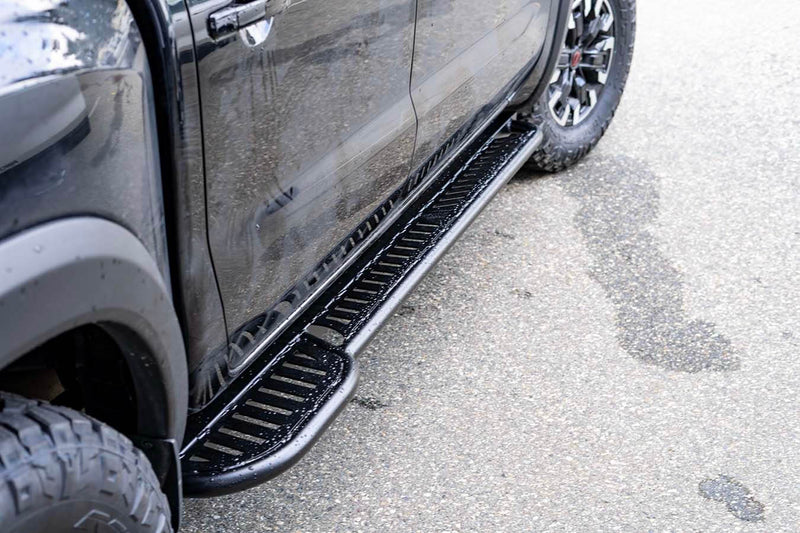

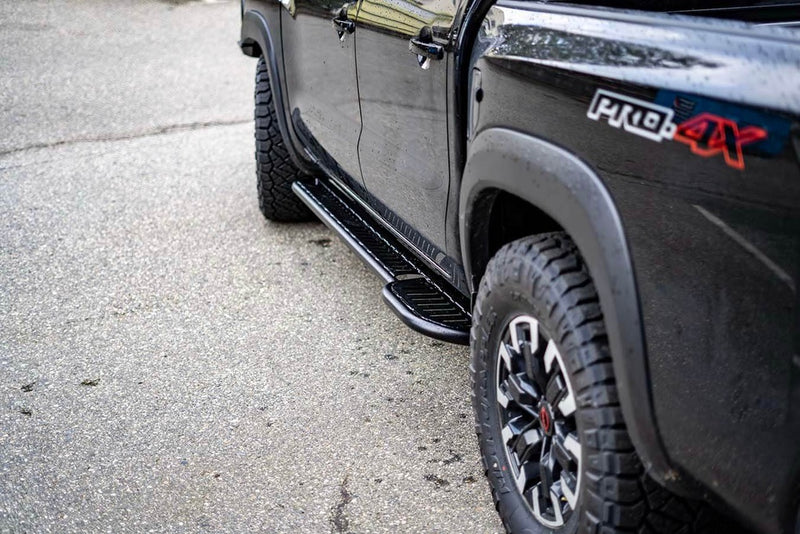

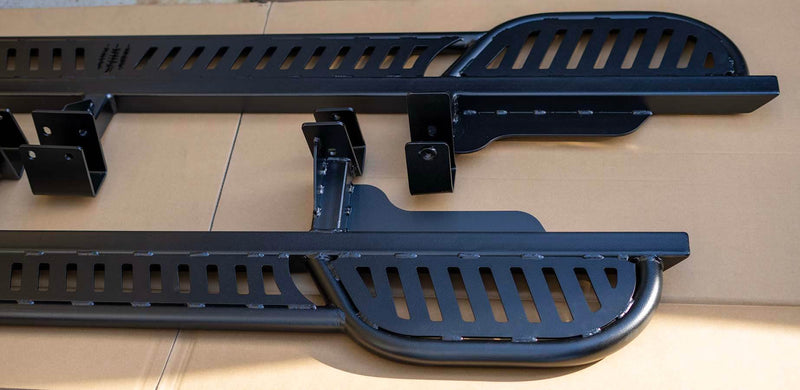

***Updated R51 Pathfinder Photos Coming Soon! However, the style of the Sliders is the same as the 2022 Frontier Pictured

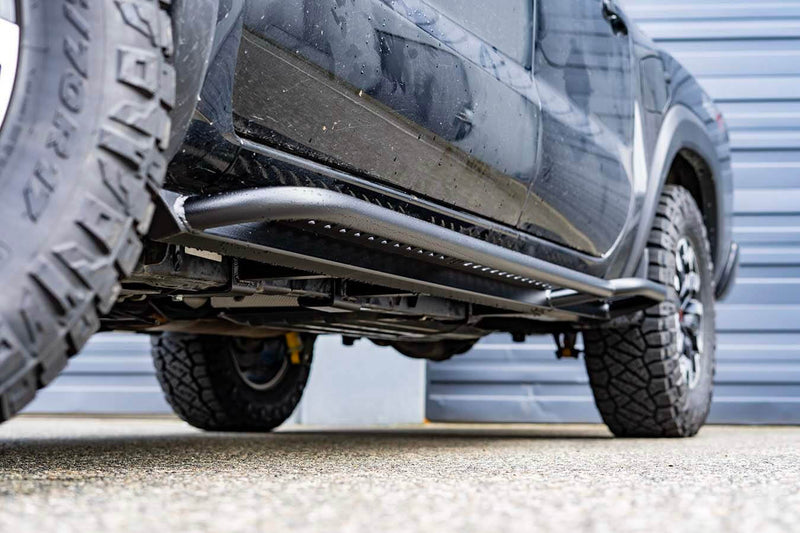

This is a DIY weld-together rock slider kit for the 2nd generation (2005-2012) R51 Nissan Pathfinder. While the sliders themselves are a weld-together kit, absolutely no welding, drilling or cutting of the actual vehicle is required! We specifically designed these sliders to be a modification-free installation so they can be removed from the vehicle without leaving a trace that they were ever there. However, don't think for a second that this means the sliders aren't built for heavy offroad hits. These sliders mount directly to your Nissan R51 Pathfinder's frame using C-shaped 1/4" thick steel mounting plates that wrap around the outer, bottom and inner walls of the truck's main frame rail. We finish these off with heavy gauge square tubing inner legs and the largest reinforcing gussets that we could fit under there.

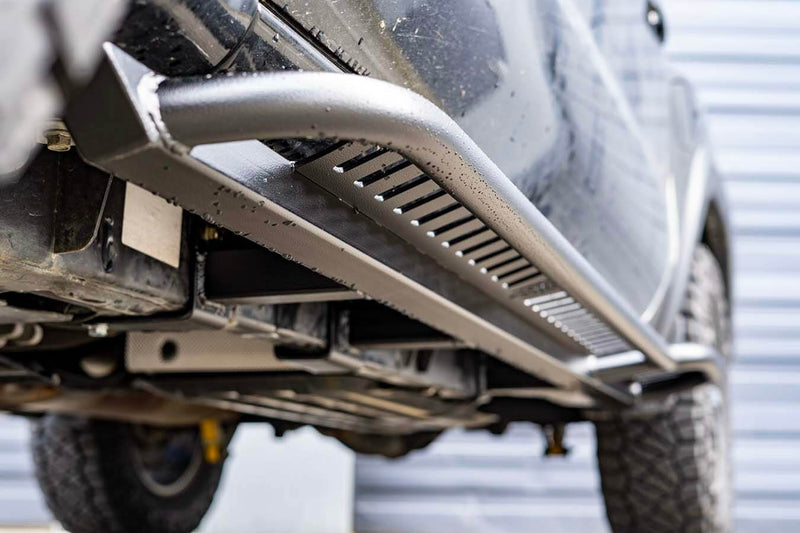

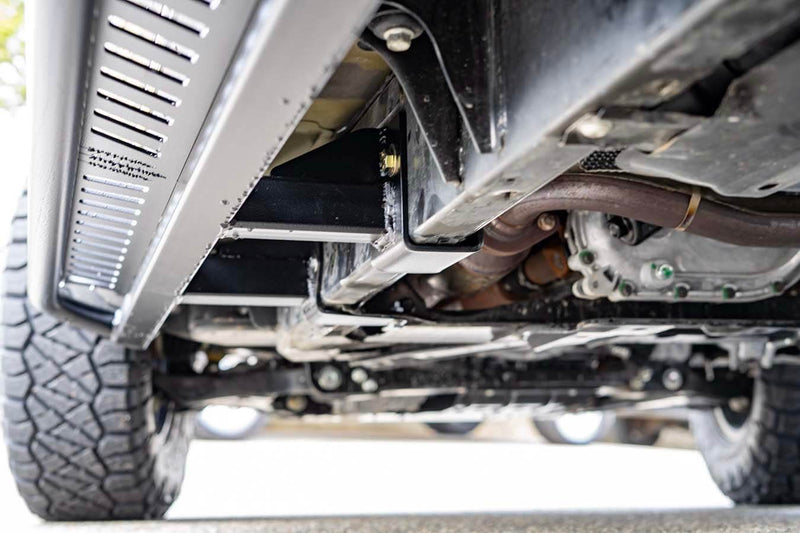

These aren't your average round tube sliders. The inner rails and mounting legs are made from 2x2" heavy wall square tubing and finished with large 1/4" thick CNC-cut and bent frame mounting plates and gussets that ensure these sliders will stand up to the harshest abuse you can throw at them. We bend the frame mounting brackets in-house, with each bracket custom tailored to the R51 Pathfinder's frame profile at each mounting point. This allows us to mount these sliders to the truck using all factory holes in the R51 Pathfinder frame. No frame drilling, welding or modification required. Our C-shaped frame mounting brackets wrap around the outer, bottom and inner faces of the frame, and then we run bolts through the outer and inner walls of the frame and into nuts that get secured on the backside. This means that in order for these rock sliders to fail, you would have to simultaneously snap the heads off the bolts and deform the 1/4" thick steel brackets enough to lift away from your frame! You can rest assured that these sliders will hold up to whatever trail hits you can throw at them.

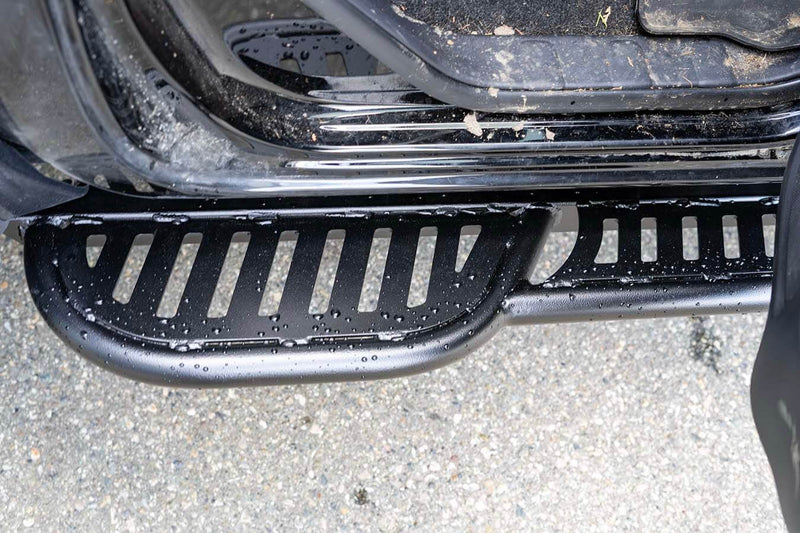

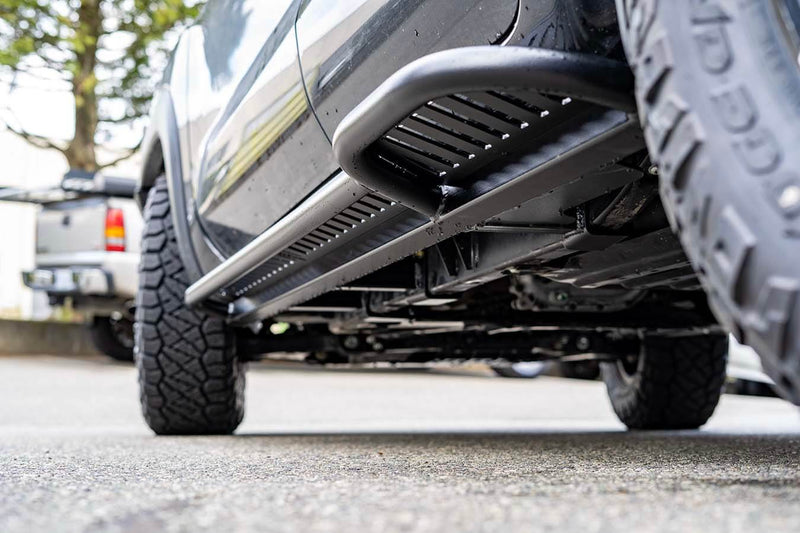

This mounting design also ensures that those big trail impacts will get spread out over a large area of your truck's frame. Some sliders use skimpy round tubing mounting legs that mount directly to the side of the thin factory frame rails. These can dent the frame rails over time and even punch right through the vehicle's frame under hard hits. With this kit, the provided frame plates spread impact loads evenly over your frame rails. The massive CNC cut gussets bridge the angle between the mounting legs and mounting plates (the highest stress areas in the entire slider) and create super stiff sliders that will not bend or flex excessively under the most extreme conditions! As a nice finishing touch, the ends of the square main rails are tapered at a 45 degree angle to ensure that they will not become battering rams if faced with a rock or stump.

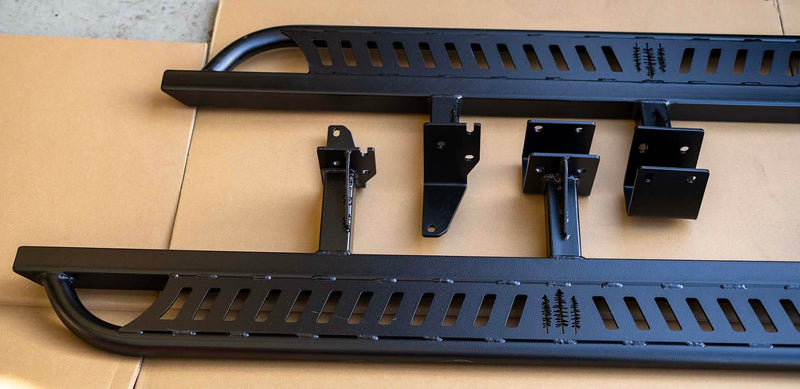

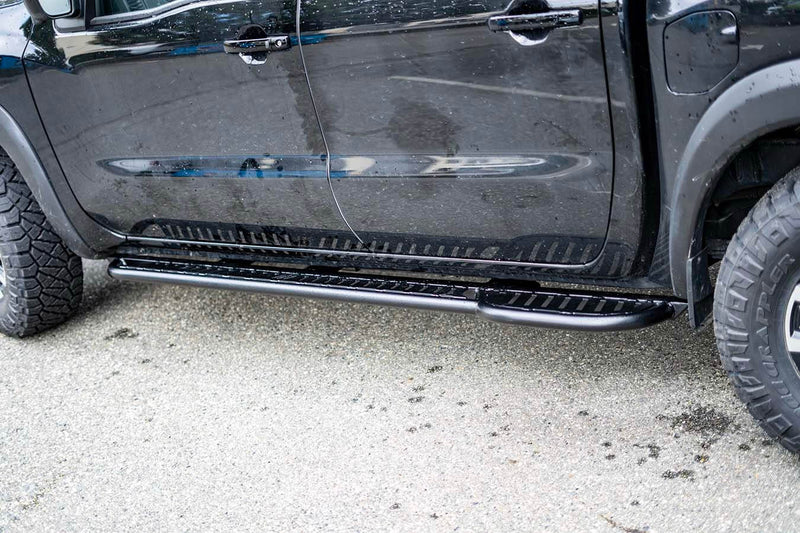

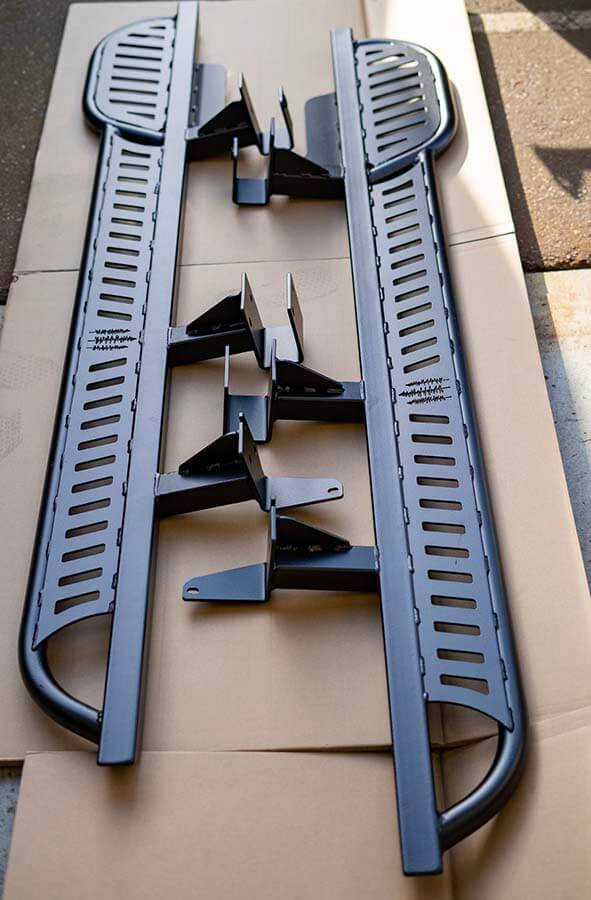

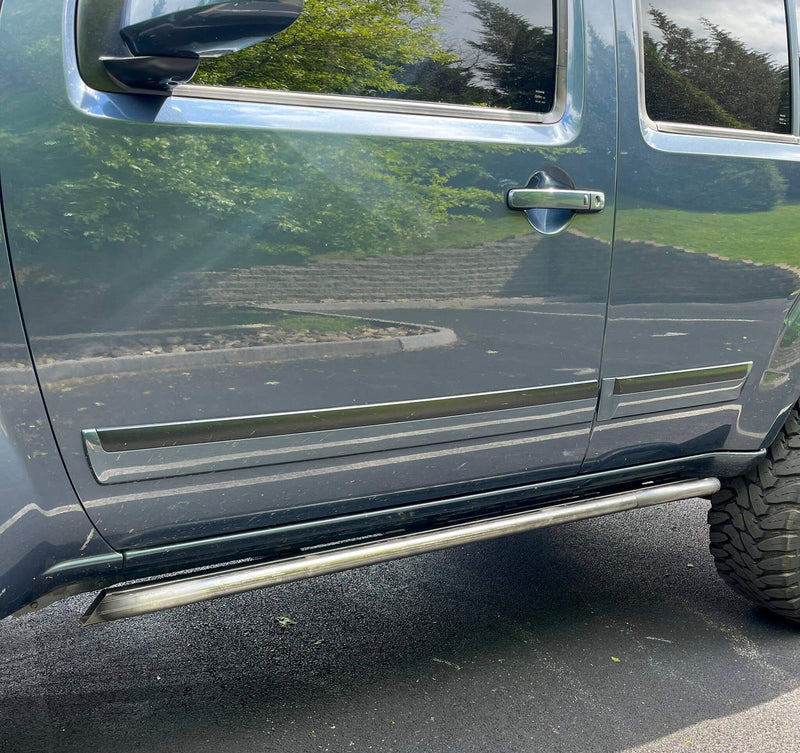

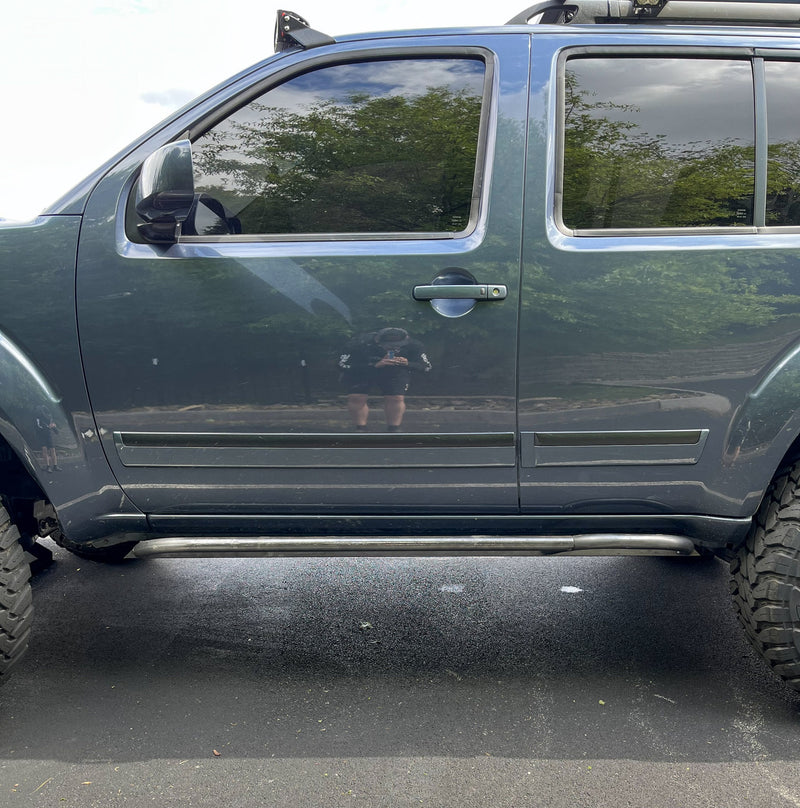

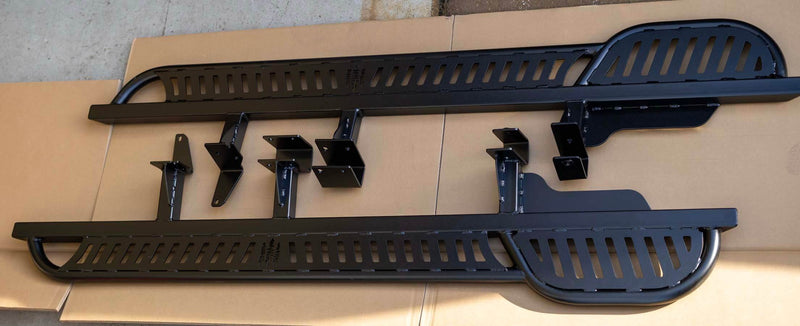

These sliders come in pieces that are pre-bent and pre-cut. Simply line them up as per the provided assembly directions and diagrams, weld them together, and install them on your truck. To make it even easier, the kits ship with clear and detailed step by step directions that are accompanied by CAD diagrams. The 6 (3 per side) mounting legs in this kit ship pre-cut with the perfect angles and lengths so the sliders can be positioned at the perfect angle and distance from the vehicle without any guess work or frustrating angle cuts. The pictured sliders are set at a 10 degree angle to provide great ground clearance and a convenient step to reach your roof rack or truck bed. You can also adjust the angle up or down while assembling the sliders if you wish to have a flatter or more extreme slider angle.
